نموذج

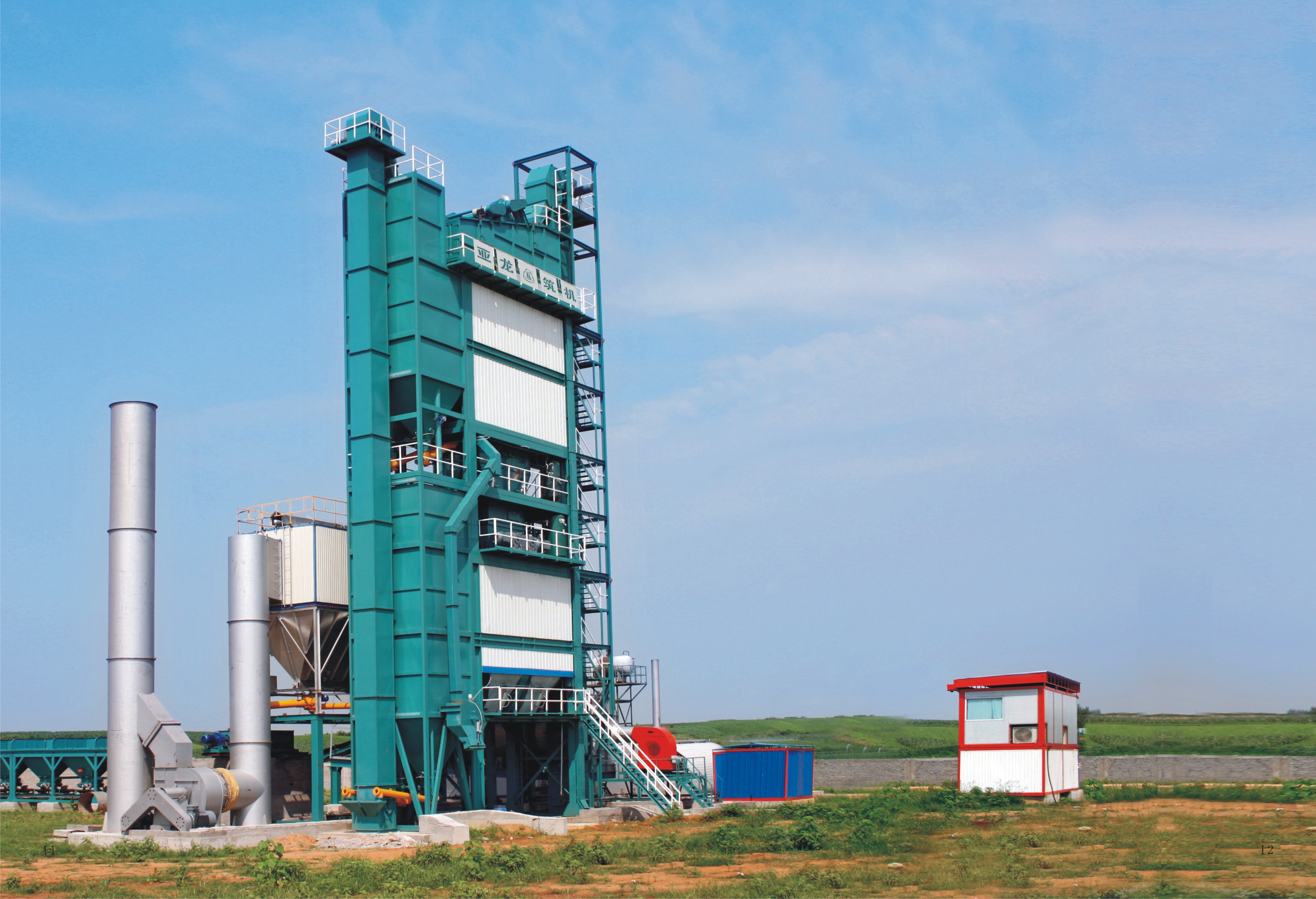

LB4000

المؤشرات الرئيسية

سعة(t/h)

320

إجمالي الطاقة(kw)

836

Noise(dB)

≤70

الجهد االكهربى

220V/380V-50HZ(Adjustable)

Cold Feeder

Cold Bin(m³)

6*10

Belt Feeding Capacity(t/h)

340

Belt Width(mm)

800

Feeding Belt Adjustment Mode

تكرار Invertor

نظام التجفيف

Drying Capacity(t/h)

340

Dryer Drum Size(mm)

Φ2800*11000

Drive قوة المحركr(kw)

4*30

Fuel

Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

Coal Burner

Max Burning Amount(kg/h)

4500

Oil Burner

Max Burning Amount(kg/h)

360-1800

Power(kw)

4000-20000

Dust Collecting System

Primary Gravity جامع الغبار

Cyclone جامع الغبار, Volute Casing Collector

Baghouse جامع الغبار

Filter Area(m²)

1152

Filter Bag

NOMEX (USA. DuPont)

انبعاثات الهواء

≤20mg/Nm³

Air Black

RingelmannⅠ

Blower(m³/min)

2230

Mixing Tower

Hot Aggregate Elevator

يكتب

Chain Elevating

Capacity(t/h)

340

Vibrating Screen

Screening Decks

6

Screening Area( m²)

25.9

Hot Storage Bin

Quantity

6+1

Capacity( m³)

65

Mixer

سعة الخلاط(kg)

4000

يكتب

Double Axis Forcing Stirring Batch Mixer

Mixing Period(s)

45

Mixing Power(kw)

2*55

نظام الوزن

Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2%

Bitumen Supply System

Heating يكتب

Electric Heating/Hot Oil Heating System

Bitumen Pump

Screw Pump Injection يكتب

Discharge Amount of Bitumen(L/min)

900

Bitumen Tank( m³)

4*40

Fuel Tank

Optional

Filler Supply System

Filler Tank

Optional

Screw conveyor Capacity(t/h)

44

Hot Mix Storage Silo

Bottom Placed/Side Placed

40t/60t/80t, Optional

Pneumatic System

Air Compressor

Screw Air Compressor

Air Storage Tank

600L---2000L Optional

Control System

Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER)
